Fluidic muscle with two double acting cylinders

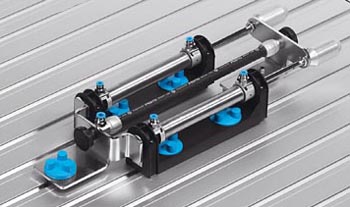

Fluidic muscle can be guided by coupling it mechanically with two double-acting cylinders. It is also possible to apply a load to the muscle via the cylinders.
Adjustable parameters
Fluidic muscle
| Designation |
Range |
Default value |
| Type |
DMSP-10, DMSP-20, DMSP-40, MAS-10, MAS-20, MAS-40 |
DMSP-10 |
| Length |
40 ... 9000 mm |
250 |
Cylinder
| Designation |
Range |
Default value |
| Piston diameter |
1 ... 1000 mm |
20 |
| Piston rod diameter |
0 ... 1000 mm |
8 |
| Maximum stroke |
1 ... 5000 mm |
200 |
| Piston Position |
0 ... 5000 mm |
0 |
| Damping length |
1 ... 100 mm |
10 |
External load
| Designation |
Range |
Default value |
| External force |
-1000000 ... 1000000 N |
0 |
| Moving mass |
0 ... 10000 kg |
0 |
| Static friction coefficient |
0 ... 2 |
0 |
| Sliding friction coefficient |
0 ... 2 |
0 |
| Mounting angle |
0 ... 360 deg |
0 |
